yasmin_demos.action_client_demo.FibonacciState Class Reference

Inheritance diagram for yasmin_demos.action_client_demo.FibonacciState:

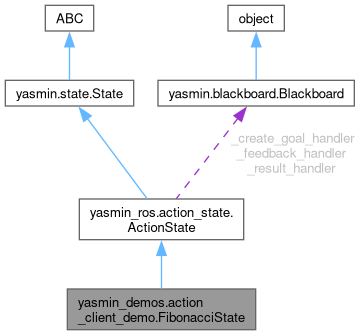

Collaboration diagram for yasmin_demos.action_client_demo.FibonacciState:

Public Member Functions
None	__init__ (self)
Fibonacci.Goal	create_goal_handler (self, Blackboard blackboard)
str	response_handler (self, Blackboard blackboard, Fibonacci.Result response)
None	print_feedback (self, Blackboard blackboard, Fibonacci.Feedback feedback)
Public Member Functions inherited from yasmin_ros.action_state.ActionState
None	__init__ (self, Type action_type, str action_name, Callable create_goal_handler, Set[str] outcomes=None, Callable result_handler=None, Callable feedback_handler=None, Node node=None, float timeout=None)
None	cancel_state (self)
str	execute (self, Blackboard blackboard)
Public Member Functions inherited from yasmin.state.State
None	__init__ (self, Set[str] outcomes)
str	__call__ (self, Blackboard blackboard=None)
str	__str__ (self)
bool	is_canceled (self)
bool	is_running (self)
Set[str]	get_outcomes (self)

Public Attributes
	create_goal_handler
	response_handler
	print_feedback

Additional Inherited Members
Protected Member Functions inherited from yasmin_ros.action_state.ActionState
None	_goal_response_callback (self, Future future)
None	_get_result_callback (self, Future future)
Protected Attributes inherited from yasmin_ros.action_state.ActionState
Event	_action_done_event = Event()
	Event used to wait for action completion.
Any	_action_result = None
	The result returned by the action server.
GoalStatus	_action_status = None
	The status of the action execution.
ClientGoalHandle	_goal_handle = None
	Handle for the goal sent to the action server.
RLock	_goal_handle_lock = RLock()
	Lock to manage access to the goal handle.
Callable[[Blackboard], Any]	_create_goal_handler = create_goal_handler
	Function that creates the goal to send.
Callable[[Blackboard, Any], str]	_result_handler = result_handler
	Function to handle the result from the action server.
Callable[[Blackboard, Any], None]	_feedback_handler = feedback_handler
	Function to handle feedback from the action server.
float	_timeout = timeout
	Timeout duration for waiting for the action server.
Node	_node = node
	The ROS 2 node instance used to communicate with the action server.
str	_action_name = action_name
	The name of the action to be performed.
ActionClient	_action_client
	The action client used to send goals.
	_goal_response_callback
	_get_result_callback = self._goal_handle.get_result_async()
Protected Attributes inherited from yasmin.state.State
Set	_outcomes = set()
	A set of valid outcomes for this state.
bool	_running = False
	A flag indicating whether the state is currently running.
bool	_canceled = False
	A flag indicating whether the state has been canceled.

Detailed Description

Class representing the state of the Fibonacci action.

Inherits from ActionState and implements methods to handle the
Fibonacci action in a finite state machine.

Attributes:
    None

Constructor & Destructor Documentation

__init__()

None yasmin_demos.action_client_demo.FibonacciState.__init__

(

self

)

Initializes the FibonacciState.

Sets up the action type and the action name for the Fibonacci
action. Initializes goal, response handler, and feedback
processing callbacks.

Parameters:
    None

Returns:
    None

Member Function Documentation

create_goal_handler()

Fibonacci.Goal yasmin_demos.action_client_demo.FibonacciState.create_goal_handler	(		self,
		Blackboard	blackboard )

Creates the goal for the Fibonacci action.

This method retrieves the input value from the blackboard and
populates the Fibonacci goal.

Parameters:
    blackboard (Blackboard): The blackboard containing the state
    information.

Returns:
    Fibonacci.Goal: The populated goal object for the Fibonacci action.

Raises:
    KeyError: If the expected key is not present in the blackboard.

print_feedback()

None yasmin_demos.action_client_demo.FibonacciState.print_feedback	(		self,
		Blackboard	blackboard,
		Fibonacci.Feedback	feedback )

Prints feedback from the Fibonacci action.

This method logs the partial sequence received during the action.

Parameters:
    blackboard (Blackboard): The blackboard (not used in this method).
    feedback (Fibonacci.Feedback): The feedback object from the Fibonacci action.

Returns:
    None

Raises:
    None

response_handler()

str yasmin_demos.action_client_demo.FibonacciState.response_handler	(		self,
		Blackboard	blackboard,
		Fibonacci.Result	response )

Handles the response from the Fibonacci action.

This method processes the result of the Fibonacci action and
stores it in the blackboard.

Parameters:
    blackboard (Blackboard): The blackboard to store the result.
    response (Fibonacci.Result): The result object from the Fibonacci action.

Returns:
    str: Outcome of the operation, typically SUCCEED.

Raises:
    None

Member Data Documentation

create_goal_handler

yasmin_demos.action_client_demo.FibonacciState.create_goal_handler

print_feedback

yasmin_demos.action_client_demo.FibonacciState.print_feedback

response_handler

yasmin_demos.action_client_demo.FibonacciState.response_handler

---

The documentation for this class was generated from the following file:

• yasmin_demos/yasmin_demos/action_client_demo.py
