yasmin::blackboard::Blackboard Class Reference

A thread-safe storage for key-value pairs of varying types. More...

#include <blackboard.hpp>

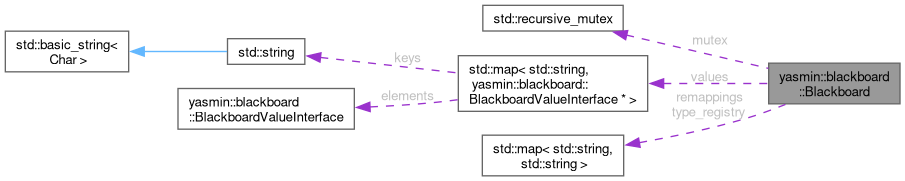

Collaboration diagram for yasmin::blackboard::Blackboard:

Public Member Functions
	Blackboard ()
	Default constructor for Blackboard.
	Blackboard (const Blackboard &other)
	Copy constructor for Blackboard.
virtual	~Blackboard ()
	Virtual destructor for Blackboard.
template<class T>
void	set (const std::string &name, T value)
	Set a value in the blackboard.
template<class T>
T	get (const std::string &key)
	Retrieve a value from the blackboard.
void	remove (const std::string &key)
	Remove a value from the blackboard.
bool	contains (const std::string &key)
	Check if a key exists in the blackboard.
int	size ()
	Get the number of key-value pairs in the blackboard.
std::string	get_type (const std::string &key)
	Get the type of a value stored in the blackboard.
std::string	to_string ()
	Convert the contents of the blackboard to a string.
void	set_remappings (const std::map< std::string, std::string > &remappings)
	Set the remappings of the blackboard.
const std::map< std::string, std::string > &	get_remappings ()
	Get the remappings of the blackboard.

Private Member Functions
const std::string &	remap (const std::string &key)
	Internal method that acquires the maped key. In the case the key is not remaped, retruns the arg key.

Private Attributes
std::recursive_mutex	mutex
	Mutex for thread safety.
std::map< std::string, BlackboardValueInterface * >	values
	Storage for key-value pairs.
std::map< std::string, std::string >	type_registry
	Storage for type information for each key.
std::map< std::string, std::string >	remappings
	Storage for key remappings.

Detailed Description

A thread-safe storage for key-value pairs of varying types.

The Blackboard class allows storing, retrieving, and managing values associated with string keys in a thread-safe manner using a recursive mutex. Values are stored as pointers to BlackboardValueInterface instances.

Constructor & Destructor Documentation

Blackboard() [1/2]

Blackboard::Blackboard

(

)

Default constructor for Blackboard.

Blackboard() [2/2]

Blackboard::Blackboard

(

const Blackboard &

other

)

Copy constructor for Blackboard.

Parameters

other

The instance to copy from.

~Blackboard()

Blackboard::~Blackboard ( )

virtual

Virtual destructor for Blackboard.

Member Function Documentation

contains()

bool Blackboard::contains

(

const std::string &

key

)

Check if a key exists in the blackboard.

Parameters

key	The key to check.

Returns

True if the key exists, false otherwise.

get()

template<class T>

T yasmin::blackboard::Blackboard::get ( const std::string & key )

inline

Retrieve a value from the blackboard.

Template Parameters

T	The type of the value to retrieve.

Parameters

name	The key associated with the value.

Returns

The value associated with the specified key.

Exceptions

std::runtime_error

if the key does not exist.

get_remappings()

const std::map< std::string, std::string > & Blackboard::get_remappings

(

)

Get the remappings of the blackboard.

Returns

The remappings of the blackboard.

get_type()

std::string Blackboard::get_type

(

const std::string &

key

)

Get the type of a value stored in the blackboard.

Parameters

key	The key associated with the value.

Returns

A string representation of the type.

Exceptions

std::runtime_error

if the key does not exist.

remap()

const std::string & Blackboard::remap ( const std::string & key )

private

Internal method that acquires the maped key. In the case the key is not remaped, retruns the arg key.

Parameters

other

The instance to copy from.

remove()

void Blackboard::remove

(

const std::string &

key

)

Remove a value from the blackboard.

Parameters

key	The key associated with the value to remove.

set()

template<class T>

void yasmin::blackboard::Blackboard::set ( const std::string & name, T value )

inline

Set a value in the blackboard.

Template Parameters

T	The type of the value to store.

Parameters

name	The key to associate with the value.
value	The value to store.

set_remappings()

void Blackboard::set_remappings

(

const std::map< std::string, std::string > &

remappings

)

Set the remappings of the blackboard.

Parameters

remappings

The remappings to set.

size()

int Blackboard::size

(

)

Get the number of key-value pairs in the blackboard.

Returns

The size of the blackboard.

to_string()

std::string Blackboard::to_string

(

)

Convert the contents of the blackboard to a string.

Returns

A string representation of the blackboard.

Member Data Documentation

mutex

std::recursive_mutex yasmin::blackboard::Blackboard::mutex

private

Mutex for thread safety.

remappings

std::map<std::string, std::string> yasmin::blackboard::Blackboard::remappings

private

Storage for key remappings.

type_registry

std::map<std::string, std::string> yasmin::blackboard::Blackboard::type_registry

private

Storage for type information for each key.

values

std::map<std::string, BlackboardValueInterface *> yasmin::blackboard::Blackboard::values

private

Storage for key-value pairs.

---

The documentation for this class was generated from the following files:

• yasmin/include/yasmin/blackboard/blackboard.hpp
• yasmin/src/yasmin/blackboard/blackboard.cpp
