Represents a state that executes a callback function. More...

#include <cb_state.hpp>

Inheritance diagram for yasmin::CbState:

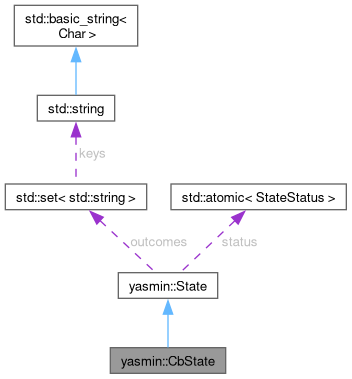

Collaboration diagram for yasmin::CbState:

[legend]

Public Member Functions
	CbState (const std::set< std::string > &outcomes, std::function< std::string(std::shared_ptr< blackboard::Blackboard >)> callback)
	Constructs a CbState object.

std::string	execute (std::shared_ptr< blackboard::Blackboard > blackboard) override
	Executes the callback function.

Public Member Functions inherited from yasmin::State
	State (const std::set< std::string > &outcomes)
	Constructs a State with a set of possible outcomes.

StateStatus	get_status () const
	Gets the current status of the state.

bool	is_idle () const
	Checks if the state is idle.

bool	is_running () const
	Checks if the state is currently running.

bool	is_canceled () const
	Checks if the state has been canceled.

bool	is_completed () const
	Checks if the state has completed execution.

std::string	operator() (std::shared_ptr< blackboard::Blackboard > blackboard)
	Executes the state and returns the outcome.

virtual void	cancel_state ()
	Cancels the current state execution.

std::set< std::string > const &	get_outcomes ()
	Gets the set of possible outcomes for this state.

virtual std::string	to_string ()
	Converts the state to a string representation.

Private Attributes
std::function< std::string(std::shared_ptr< blackboard::Blackboard >)>	callback
	Pointer to the callback function to be executed.

Additional Inherited Members
Protected Attributes inherited from yasmin::State
std::set< std::string >	outcomes
	The possible outcomes of this state.

Detailed Description

Represents a state that executes a callback function.

The CbState class inherits from the State class and is designed to execute a user-defined callback function, utilizing a shared pointer to a Blackboard object to obtain necessary data.

Constructor & Destructor Documentation

◆ CbState()

yasmin::CbState::CbState	(	const std::set< std::string > &	outcomes,
		std::function< std::string(std::shared_ptr< blackboard::Blackboard >)>	callback )

Constructs a CbState object.

Parameters

outcomes	A set of possible outcomes for this state.
callback	A function pointer to the callback function that will be executed when this state is activated.

Exceptions

std::invalid_argument If the outcomes set is empty.

Member Function Documentation

◆ execute()

std::string yasmin::CbState::execute ( std::shared_ptr< blackboard::Blackboard > blackboard )

overridevirtual

Executes the callback function.

This function is called to execute the callback and retrieve the result. It may use the provided Blackboard for additional data.

Parameters

blackboard A shared pointer to the Blackboard object used during execution.

Returns: The result of the callback function execution as a string.

Exceptions

std::runtime_error If the callback execution fails.

Reimplemented from yasmin::State.

Member Data Documentation

◆ callback

std::function<std::string(std::shared_ptr<blackboard::Blackboard>)> yasmin::CbState::callback

private

Pointer to the callback function to be executed.

The documentation for this class was generated from the following files:

yasmin/include/yasmin/cb_state.hpp
yasmin/src/yasmin/cb_state.cpp
