yasmin::Blackboard Class Reference

A thread-safe storage for key-value pairs of varying types. More...

#include <blackboard.hpp>

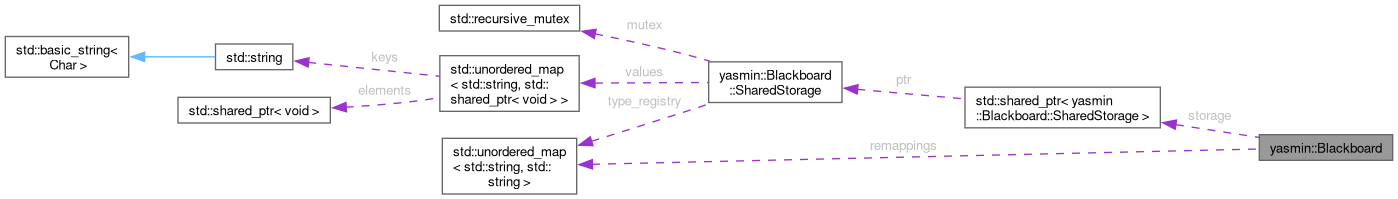

Collaboration diagram for yasmin::Blackboard:

Classes
struct	SharedStorage
	Shared storage used by blackboard copies. More...

Public Types
using	SharedPtr = std::shared_ptr<Blackboard>
	Shared pointer type for Blackboard.
using	ConstSharedPtr = std::shared_ptr<const Blackboard>
using	UniquePtr = std::unique_ptr<Blackboard>
	Unique pointer type for Blackboard.
using	WeakPtr = std::weak_ptr<Blackboard>
	Weak pointer type for Blackboard.
using	ConstWeakPtr = std::weak_ptr<const Blackboard>

Public Member Functions
	Blackboard ()
	Default constructor for Blackboard.
	Blackboard (const Blackboard &other)
	Copy constructor for Blackboard.
template<class T>
void	set (const std::string &name, T value)
	Set a value in the blackboard.
template<class T>
T	get (const std::string &key) const
	Retrieve a value from the blackboard.
void	remove (const std::string &key)
	Remove a value from the blackboard.
bool	contains (const std::string &key) const
	Check if a key exists in the blackboard.
void	copy_value_from (const Blackboard &other, const std::string &source_key, const std::string &target_key)
	Copy a value from another blackboard.
int	size () const
	Get the number of key-value pairs in the blackboard.
std::vector< std::string >	keys () const
	Get the keys visible in the current remapping scope.
std::string	get_type (const std::string &key) const
	Get the type of a value stored in the blackboard.
std::string	to_string () const
	Convert the contents of the blackboard to a string.
void	set_remappings (const Remappings &remappings)
	Set the remappings of the blackboard.
const Remappings &	get_remappings () const noexcept
	Get the remappings of the blackboard.

Static Public Member Functions
template<typename... Args>
static std::shared_ptr< Blackboard >	make_shared (Args &&...args)
template<typename... Args>
static std::unique_ptr< Blackboard >	make_unique (Args &&...args)

Private Member Functions
const std::string &	remap (const std::string &key) const
	Internal method that acquires the maped key. In the case the key is not remaped, retruns the arg key.

Private Attributes
std::shared_ptr< SharedStorage >	storage
	Shared storage for key-value pairs and type information.
Remappings	remappings
	Storage for key remappings local to this blackboard handle.

Detailed Description

A thread-safe storage for key-value pairs of varying types.

The Blackboard class allows storing, retrieving, and managing values associated with string keys in a thread-safe manner using a recursive mutex.

Member Typedef Documentation

ConstSharedPtr

using yasmin::Blackboard::ConstSharedPtr = std::shared_ptr<const Blackboard>

ConstWeakPtr

using yasmin::Blackboard::ConstWeakPtr = std::weak_ptr<const Blackboard>

SharedPtr

using yasmin::Blackboard::SharedPtr = std::shared_ptr<Blackboard>

Shared pointer type for Blackboard.

• Shared pointer type for Blackboard.

UniquePtr

using yasmin::Blackboard::UniquePtr = std::unique_ptr<Blackboard>

Unique pointer type for Blackboard.

WeakPtr

using yasmin::Blackboard::WeakPtr = std::weak_ptr<Blackboard>

Weak pointer type for Blackboard.

Constructor & Destructor Documentation

Blackboard() [1/2]

Blackboard::Blackboard

(

)

Default constructor for Blackboard.

Blackboard() [2/2]

Blackboard::Blackboard

(

const Blackboard &

other

)

Copy constructor for Blackboard.

Parameters

other

The instance to copy from.

The copied blackboard shares the underlying storage with other while keeping its own local remapping table.

Member Function Documentation

contains()

bool Blackboard::contains

(

const std::string &

key

)

const

Check if a key exists in the blackboard.

Parameters

key	The key to check.

Returns

True if the key exists, false otherwise.

copy_value_from()

void Blackboard::copy_value_from	(	const Blackboard &	other,
		const std::string &	source_key,
		const std::string &	target_key )

Copy a value from another blackboard.

Parameters

other	The source blackboard.
source_key	The key to read from the source blackboard.
target_key	The key to write in this blackboard.

The stored value is forwarded using the existing type-erased storage so the type does not need to be known at compile time.

get()

template<class T>

T yasmin::Blackboard::get ( const std::string & key ) const

inline

Retrieve a value from the blackboard.

Template Parameters

T	The type of the value to retrieve.

Parameters

name	The key associated with the value.

Returns

The value associated with the specified key.

Exceptions

std::runtime_error

if the key does not exist.

get_remappings()

const Remappings & Blackboard::get_remappings ( ) const

noexcept

Get the remappings of the blackboard.

Returns

The remappings of the blackboard.

get_type()

std::string Blackboard::get_type

(

const std::string &

key

)

const

Get the type of a value stored in the blackboard.

Parameters

key	The key associated with the value.

Returns

A string representation of the type.

Exceptions

std::runtime_error

if the key does not exist.

keys()

std::vector< std::string > Blackboard::keys

(

)

const

Get the keys visible in the current remapping scope.

Returns

A sorted list of visible key names.

If one or more remappings point to a stored key, the remapped names are returned instead of the underlying storage key. Multiple remapped names can therefore refer to the same stored value.

make_shared()

template<typename... Args>

std::shared_ptr< Blackboard > yasmin::Blackboard::make_shared ( Args &&... args )

inlinestatic

make_unique()

template<typename... Args>

std::unique_ptr< Blackboard > yasmin::Blackboard::make_unique ( Args &&... args )

inlinestatic

remap()

const std::string & Blackboard::remap ( const std::string & key ) const

private

Internal method that acquires the maped key. In the case the key is not remaped, retruns the arg key.

Parameters

other

The instance to copy from.

remove()

void Blackboard::remove

(

const std::string &

key

)

Remove a value from the blackboard.

Parameters

key	The key associated with the value to remove.

set()

template<class T>

void yasmin::Blackboard::set ( const std::string & name, T value )

inline

Set a value in the blackboard.

Template Parameters

T	The type of the value to store.

Parameters

name	The key to associate with the value.
value	The value to store.

set_remappings()

void Blackboard::set_remappings

(

const Remappings &

remappings

)

Set the remappings of the blackboard.

Parameters

remappings

The remappings to set.

size()

int Blackboard::size

(

)

const

Get the number of key-value pairs in the blackboard.

Returns

The size of the blackboard.

to_string()

std::string Blackboard::to_string

(

)

const

Convert the contents of the blackboard to a string.

Returns

A string representation of the blackboard.

Member Data Documentation

remappings

Remappings yasmin::Blackboard::remappings

private

Storage for key remappings local to this blackboard handle.

storage

std::shared_ptr<SharedStorage> yasmin::Blackboard::storage

private

Shared storage for key-value pairs and type information.

---

The documentation for this class was generated from the following files:

• yasmin/include/yasmin/blackboard.hpp
• yasmin/src/yasmin/blackboard.cpp
